Digital Price Card for CelcomDigi Stores

Thank you for purchasing the SoluM Electronic Shelf Labels (ESL) . With Electronic Shelf Labels your flimsy paper labels will be a thing of the past. Digitize and automate the process with this system to ensure that prices are updated automatically, accurately and on the fly. E-ink display on labels ensure that displays are clear, attractive and batteries last a long time. Each label can store up to 7 pages of information and also have a built in multicolored LED light for great flexibility and setting things apart from traditional paper labels.

10 x Speed

Update prices on labels faster than the ever before. The proprietary system architecture ensures updates up to 3,000 labels in just 5 minutes

Long Battery Life

E-ink technology and latest communication modules ensures a long battery life up to 10 years

NFC Capability

With built-in NFC, you can easily implement mobile payments and self-checkout, or access product information pages and digital coupons.

Seven Colored LED

The built in multi-color LED can display 7 colors, and on top of that, this bright LED screen is visible even at a full 180 degrees.

High Resolution

Our labels are designed with 30% better resolution which means 30% more information can be displayed.

ESL Components

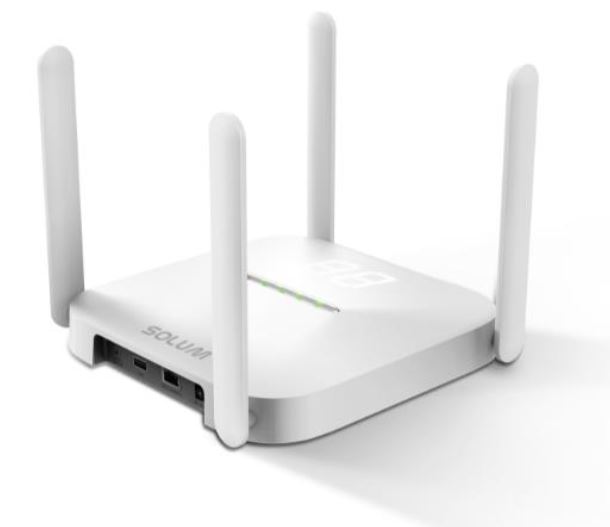

Newton Gateway

The Newton Gateway is the wireless gateway that connects wirelessly to the digital labels from the AIMS Cloud software. It is placed either in the ceiling in the middle of the retail store or at the back room. It requires internet connection to function properly. The coverage of each gateway is approximately 6,000 sq feet.

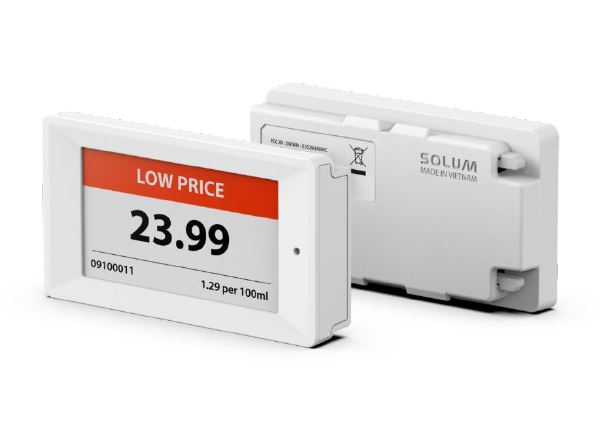

Newton Core ESL 2.2" (4 colors)

The Newton Core 2.2" 4 color label is the selected type and size of label for CelcomDigi stores. The label display is e-ink and has 4 colors ( Red, White, Black, Yellow ) . It is completely wireless and battery operated. Battery is estimated to last about 10 years. Template design is determined by HQ and will be loaded automatically depending on the promotions.

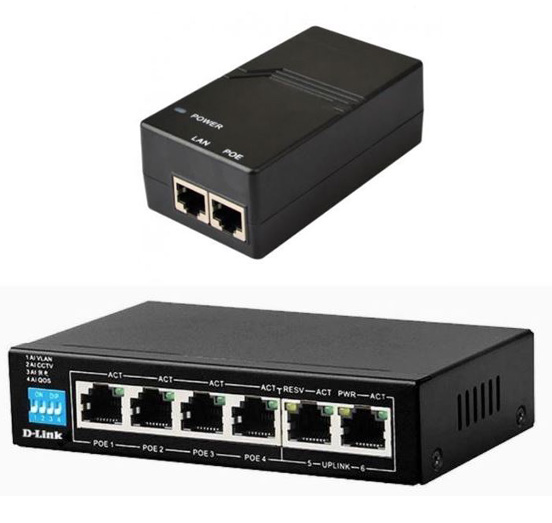

POE Switch / POE Injector

The POE Switch or POE injector will be used to supply power and data to the Newton Gateway. This device will be positioned at the back room close to the server rack. A power point is needed to supply power to this device. Data cable will be connected to store's internet router for internet access.

ESL Video Guide

How to Install AIMS Manager App on Mobile Device

How to assign products to ESL Labels with AIMS Manager App

Settings required to log in to server

IP Address/Domain : asia.common.solumesl.com

Protocol : HTTPS

Server Type : CLOUD

Region : ASIA

Username/Password : Please contact administrator for NEW user creation

Frequently Asked Questions (FAQ)

1. I do not have an account created

Please contact technical assistance for creation of new user. The contact details are listed below.

2. I do not know my password / I lost my password / I entered my password but it does not work

Please click on " Forgot your password? " and reset your password via your registered e-mail address

3. I am logged in but cannot see the 'Store' that I need to work on

Please contact technical support to request for the store to be assigned to your username.

4. I am not able to scan the barcode to assign products because the Camera icon is not there

Please click on the profile icon at the top right corner of your app. Click on Settings and then choose Scanning Type. Change it to Camera & Typing .

5. I've scanned the product barcode but the app responds 'No data Found'

Please check to see if there are other barcodes on the product. We need to scan the EAN barcode. If correct barcode is scanned but it shows the same issue then please proceed to contact technical assistance to check if the product is registered in the system. Please provide pictures front and back of the product packaging by whatsapp.

6. The wrong item is being displayed on the label

Please use the app to assign the correct product to the label

7. The wrong price is shown on the label

Please contact CelcomDigi HQ to check on the listed price of the item and they will be able to update and rectify the price accordingly.

The product is on sale but the label template does not have SALE template

Please contact CelcomDigi HQ to check on the database. The SALE template selection is done automatically if there is a sale price listed in the database.

For any technical assistance kindly contact

De Tag Industry Sdn Bhd

: 03 5191 2280
